Specifications
| Item No. |
Power(w) |
Voltage(V) |
Size(mm) |
UGR |
Color Temperature |
CRI |
Lumen |
Warranty |
| WS-DA-6W |
6 |
AC220-240 |
D104*H56 cutout90 |
<11 |
3000-6000K |
80 |
450 |
3 years |
| WS-DA-10W |
10 |
AC220-240 |
D132*H63 cutout120 |
<11 |
3000-6000K |
80 |
750 |
3 years |
| WS-DA-15W |
15 |
AC220-240 |
D200*H96 cutout175 |
<11 |
3000-6000K |
80 |
1100 |
3 years |
| WS-DA-22W |
22 |
AC220-240 |
D220*H104 cutout200 |
<11 |
3000-6000K |
80 |
1650 |
3 years |

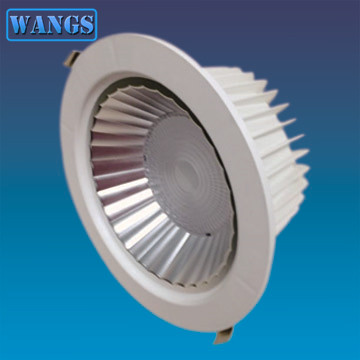

Features
1. Frame and the back cover are both made of aluminum, with great heat dissipation.
2. Many pcs SMD LEDs are around the frame, the mixed light is transmitted from the panel, the light is very soft
and comfortable.
3. High efficiency consistant current driver external, with heat protection system, can work under unstable voltage.
4. Special designed circuit, all the LEDs work separately, one failed LED will not affect the others.
5. Ecological and recyclable materials. Save 10 times energy more than that of incandescent lamps,
2 times of CFL Lamps at the same illumination. Minor emissions 65% less CO2.
6. Low light attenuation to 3%~5% in 30000hrs.

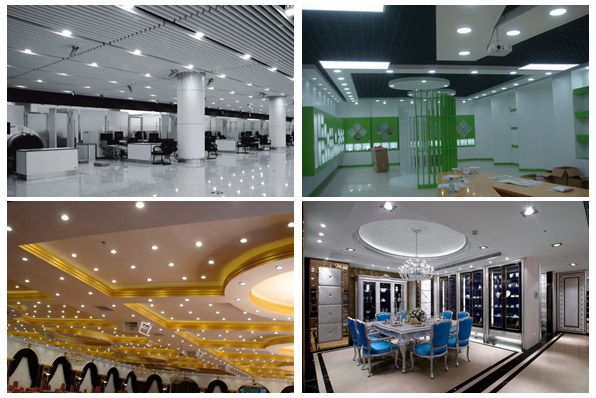

LED Down Light Application
1. shop, stores, window, supermarket, mall, hotel, lobby, hall, exhibition hall, room, counter, etc.
2. Residential lighting, commercial lighting, indoor ceiling lighting.
