LED Round Panel Light

Specifications:

Item No.	Power(w)	Voltage	Size(mm)	LED type	Color Temperature	CRI	Lumen	Warranty
RO-90-3W	3	AC100-240V	￠90mm   Cutout:φ70mm	SMD2835 15PCS	3000-6000K	70-80	240	3 years
RO-110-4W	4	AC100-240V	￠110mm   Cutout:φ90mm	SMD2835 20PCS	3000-6000K	70-80	320	3 years
RO-120-6W	6	AC100-240V	￠120mm   Cutout:φ100mm	SMD2835 30PCS	3000-6000K	70-80	480	3 years
RO-145-9W	9	AC100-240V	￠145mm    Cutout:φ130mm	SMD2835 45PCS	3000-6000K	70-80	720	3 years
RO-170-12W	12	AC100-240V	￠170mm    Cutout:φ155mm	SMD2835 60PCS	3000-6000K	70-80	960	3 years
RO-190-15W	15	AC100-240V	￠190mm   Cutout:φ175mm	SMD2835 75PCS	3000-6000K	70-80	1200	3 years
RO-225-18W	18	AC100-240V	￠225mm   Cutout:φ205mm	SMD2835 90PCS	3000-6000K	70-80	1440	3 years
RO-300-24W	24	AC100-240V	￠300mm   Cutout:φ280mm	SMD2835 120PCS	3000-6000K	70-80	1920	3 years

Features:

1) Using die-casting aluminum and sealed with silicon rubber
2) Imported illuminant with monochrome or full-color effect to ensure high brightness
3) Complied with international standard lamp bases
4) Low power consumption and energy saving
5) Green for no lead, mercury and heat radiation
6) Protecting environment for releasing much fewer carbon dioxide than traditional bulb
7) Beautiful design, long lifespan and good heat dissipation
8) CE, ROHS, FCC and TUV are approved

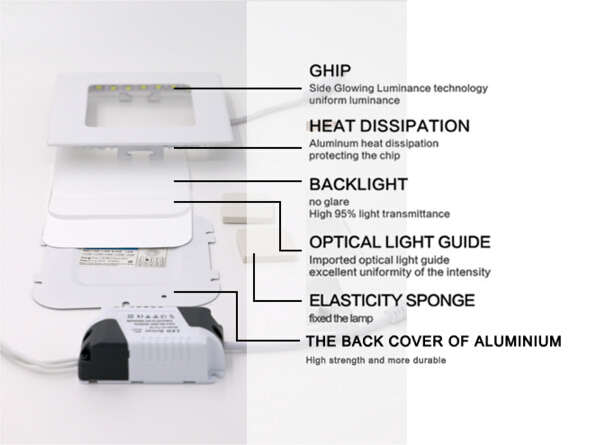

Components:

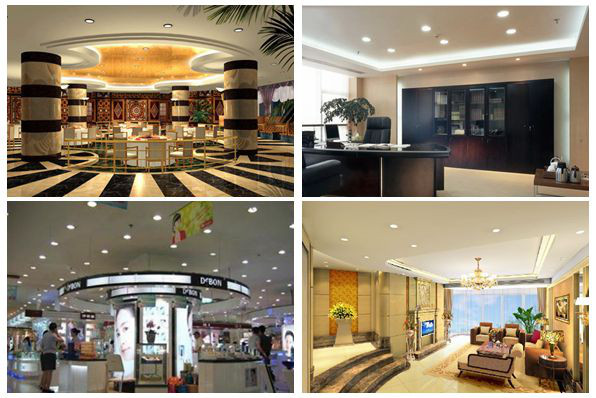

Applications:

Widely used for Indoor and outdoor places: Factories, workshops, warehouse,

toll stations, gas stations, stadiums, big supermarket etc.

Any interest,please feel free to write emails to:sales@wangsled.com
