LED Square Panel light
    Publish time 2016-08-12 10:58
LED Square Panel light

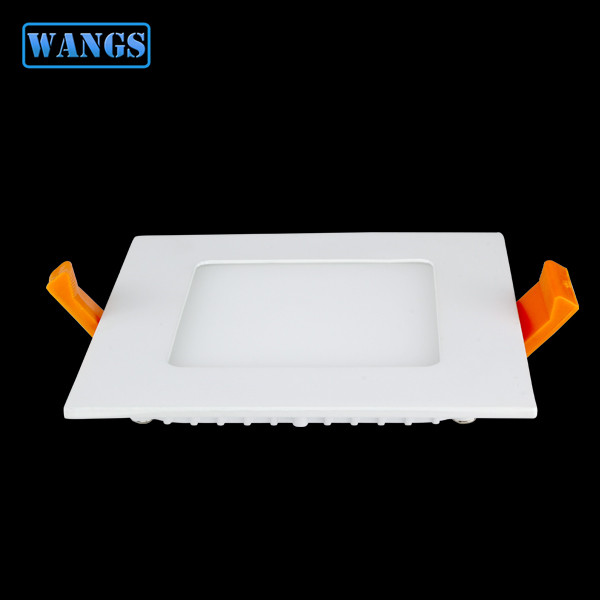

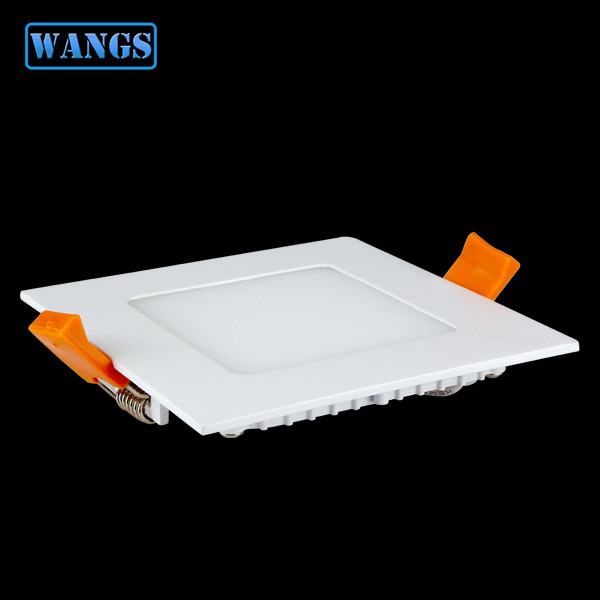

LED Square Panel Light

Specifications:

Item No. Power(w) Voltage Size(mm) LED type Color Temperature CRI Lumen Warranty
SQ-90-3W 3 AC100-240V

¢90*90mm

Cutout:φ70mm

SMD2835 15PCS 3000-6000K 70-80 240 3 years
SQ-110-4W 4 AC100-240V

110*110mm

Cutout:φ90mm

SMD2835 20PCS 3000-6000K 70-80 320 3 years
SQ-120-6W 6 AC100-240V

120*120mm

Cutout:φ100mm

SMD2835 30PCS 3000-6000K 70-80 480 3 years
SQ-145-9W 9 AC100-240V

145*145mm

Cutout:φ130mm

SMD2835 45PCS 3000-6000K 70-80 720 3 years
SQ-170-12W 12 AC100-240V

170*170mm

Cutout:φ155mm

SMD2835 60PCS 3000-6000K 70-80 960 3 years
SQ-190-15W 15 AC100-240V

190*190mm

Cutout:φ175mm

SMD2835 75PCS 3000-6000K 70-80 1200 3 years
SQ-225-18W 18 AC100-240V

¢225*225mm

Cutout:φ205mm

SMD2835 90PCS 3000-6000K 70-80 1440 3 years
SQ-300-24W 24 AC100-240V

¢300*300mm

Cutout:φ280mm

SMD2835 120PCS 3000-6000K 70-80 1920 3 years

Features:

1) Using die-casting aluminum and sealed with silicon rubber
2) Imported illuminant with monochrome or full-color effect to ensure high brightness
3) Complied with international standard lamp bases
4) Low power consumption and energy saving
5) Green for no lead, mercury and heat radiation
6) Protecting environment for releasing much fewer carbon dioxide than traditional bulb
7) Beautiful design, long lifespan and good heat dissipation
8) CE, ROHS, FCC and TUV are approved

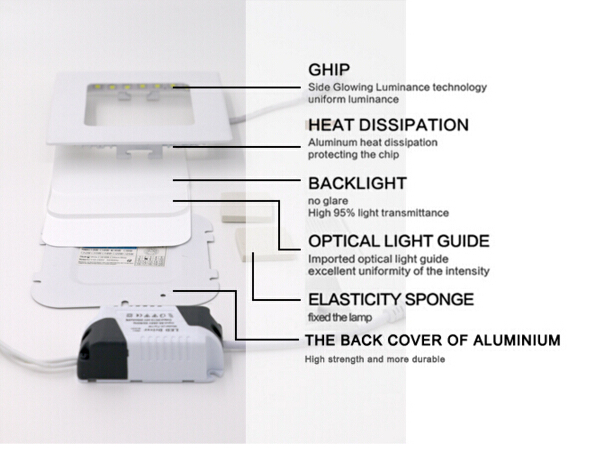

Components:

Applications:

Widely used for Indoor and outdoor places: Factories, workshops, warehouse,

toll stations, gas stations, stadiums, big supermarket etc.



Any interest, please feel free to emails: sales@wangsled.com
